Atlas+ Modular
Bridging the gap between small and mighty in tight spaces.
- Compact, High-output Commercial System
- Exclusive Marine Certified HMI/PLC Touch Screen V4 Control System
- Exclusive NEMA 4X rated enclosure
- 8-point Vibration Isolation Mounts for quiet operation

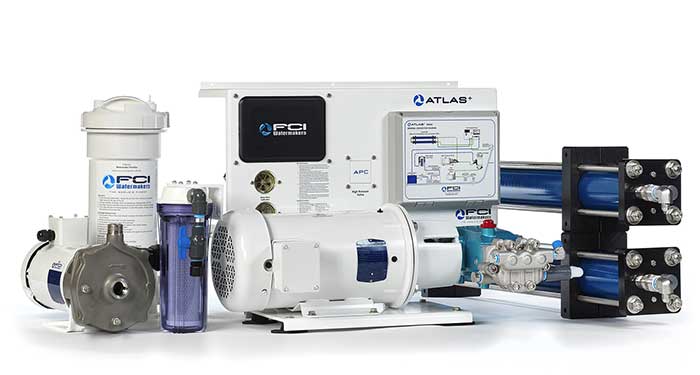

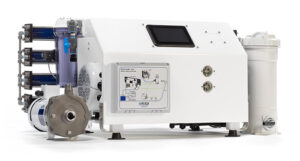

The Atlas+ Series is the most compact commercial system FCI has to offer. Built on the smaller, marine Max-Q+ platform, it has all the working benefits of its much larger, industrial Neptune+ sibling.
Atlas+ Modular Specs
Available Output
- GPD
- 1,400 / 2,000 / 2,500 / 2,800 / 3,600
- m3
- 5 / 8 / 9 / 11 / 14
Electrical Requirements
- HP
- 5
- KW
- 4.47
- VAC
- 208-220 / 440-460 / 380-415
- Phase
- 3
- HZ
- 60 / 50
- Amperes
- 16.7 / 8.5 / 10.5
Overview
The Atlas+ Series is capable of producing 1,400-3,600 GPD, and is upgradeable throughout the series. The Automated Pressure Control (APC) with manual override puts making pure fresh water, literally, a touch away. At the heart of the system, a durable wash-down duty, 5 HP motor with a robust 316 Stainless Steel high-pressure pump allow for extended run times. When installation space or generator size is limited, the Atlas+ Series truly encompasses the best of both pleasure boating and commercial worlds.
Read more on Why FCI is The Clear Choice for reliability, engineering and technical support.
Typical Sea Water Conditions
- Temperature
- 77° F / 25° C,
- TDS
- 32,000,
- Pressure
- 825 PSI
Components & Variations
Atlas+ Modular
Control / Flow Panel
| Width | 26.00 in / 660.40 mm |
|---|---|
| Depth | 9.30 in / 236.22 mm |
| Height | 14.45 in / 367.03 mm |
HP Pump
| Width | 30.45 in / 773.43 mm |
|---|---|
| Depth | 13.90 in / 353.06 mm |
| Height | 10.45 in / 265.43 mm |
LP Pump
| Width | 6.90 in / 175.26 mm |
|---|---|
| Depth | 13.50 in / 342.90 mm |
| Height | 9.15 in / 232.41 mm |
Fresh Water Flush
| Width | 9.30 in / 236.22 mm |
|---|---|
| Depth | 6.10 in / 154.94 mm |
| Height | 12.45 in / 316.23 mm |
Pre-Filter
| Width | 11.10 in / 281.94 |
|---|---|
| Depth | 9.60 in / 243.83 mm |
| Height | 20.50 in / 520.70 mm |
Pressure Vessels 1400-2500 GPD
| Width | 47.00 in / 1193.80 mm |
|---|---|
| Depth | 4.00 in / 101.60 mm |
| Height (1 Vessel) | 8.25 in / 209.55 mm |
| Height (2 Vessels) | 12.50 in / 317.50 mm |
| Height (3 Vessels) | 16.75 in / 425.45 mm |
Pressure Vessels 2800 GPD
| Width | 54.70 in / 1389.38 mm |
|---|---|
| Depth | 6.80 in / 172.72 mm |
| Height | 19.30 in / 490.22 mm |
Pressure Vessels 3600 GPD
| Width | 54.70 in / 1389.38 mm |
|---|---|
| Depth | 6.80 in / 172.72 mm |
| Height | 27.20 in / 690.88 mm |
V4 Remote 4.3 inch (OPTION)
| Width | 5.71 in / 145.03 mm |
|---|---|
| Depth | 2.13 in / 54.10 mm |
| Height | 4.09 in / 103.89 mm |
V4 Remote 7 inch (OPTION)
| Width | 8.04 in / 204.22 mm |
|---|---|
| Depth | 2.13 in / 54.10 mm |
| Height | 5.64 in / 143.26 mm |
Standard Features
- 1 HP 316SS Feed Pump
- 40 sq ft of 5 Micron Filtration
- Robust 316SS HP Pump
- Wash-down Duty Motors
- Framed system features 8-point Vibration Isolation Mounts for quiet operation
- Modular system features 4-point Vibration Isolation Mounts for quiet operation
- Intuitive HMI/PLC V4 Control System
- Exclusive Marine Certified 7” Hi-res Touch Screen Display
- Monitors are type approval certified for marine use By: ABS, GL, Lloyd’s Register EMEA, Det Norske Veritas, and Russian Maritime Register of Shipping
- One-piece Aluminum Powder Coated Frame Construction
- Fully Automatic Operation with APC
- Entire series is upgradeable to 3,600 GPD
- New NMEA 2000 compatible
- Unique IP address for remote access
- Built-in, on-screen troubleshooting
- Small frame footprint
- Ability to relocate Pressure Vessel assembly and FWF assembly to reduce frame footprint
- 316SS Boost Pump
- Visual indication of Product and Brine Flow
- Programmable, fully automatic Fresh Water Flush with carbon block filter
- Standard 40 sp. ft. Commercial Pre-filter
- Dual hertz motors for 50 or 60 hertz operation
- Multiple display station capabilities
- Automatic Flush system
- Flow Sensors
- 316SS Pressure Transducers
- Pre-treatment Lockout
- Comprehensive manuals with exploded views
- One-piece Skid Mount Design
